Service Range
1. compatible and differentiated design
2. Compatible with the SKE
3. Outlook differentiated design
4. Upgrade the coordination
5. SKE mass capacity
Product Parameters
|
Frame (AF) |
250AF |
|||||
|
Type |
N Type |
|||||
|
Pole (P) |
2-pole |
ABN202C |
||||
|
3-pole |
ABN203C |
|||||
|
4-pole |
ABN204C |
|||||
|
Rated current in A |
100,125,150,175,200,225,250 |
|||||
|
Rated operational voltage, Ue |
AC |
(V) |
690 |
|||
|
DC |
(V) |
500 |
||||
|
Rated insulation voltage, Ui |
750 |
|||||
|
Rated impulse withstand voltage Uimp |
8 |
|||||
|
Rated short-circuit breaking capacity(Icu)Ka,iec 60947-2 |
||||||
|
AC |
690V |
8 |
||||
|
480/500V |
18 |
|||||
|
415/460V |
26 |
|||||
|
380V |
30 |
|||||
|
220/250V |
65 |
|||||
|
DC |
500V(3P) |
10 |
||||
|
250(2P) |
10 |
|||||
|
Ics=% x Icu |
100 |
|||||
|

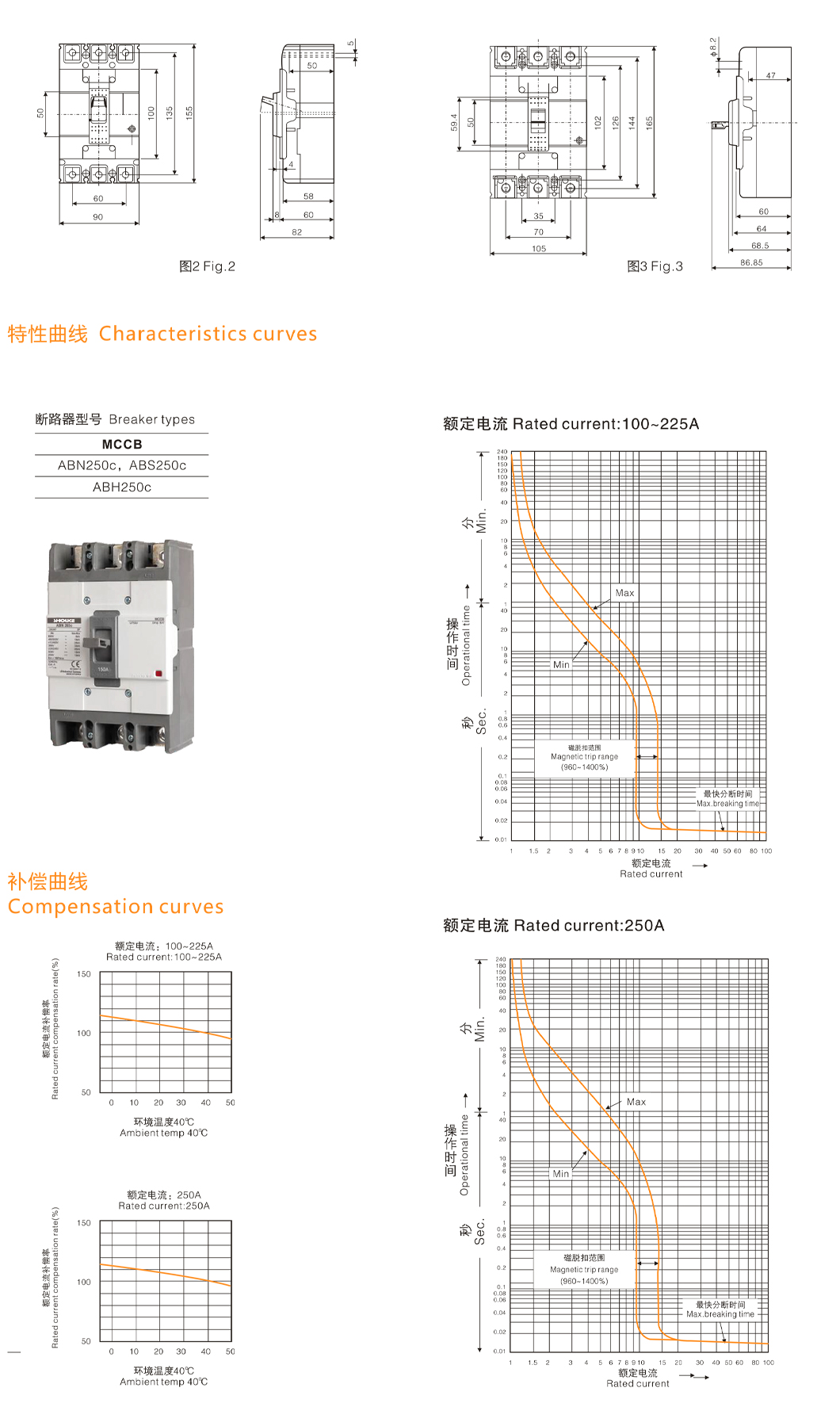

Dimensions(mm) |
W * H*D |
105*165*60mm |
||||
